Digital Random: Expensive Oracle Service
In ancient stories, people didn’t have enough information to make decisions and turned to oracles for information beyond their understanding.
The inspiration for this project revolves around the aptly named concept of “Oracle” in the blockchain world. In smart contracts on the blockchain, there isn’t a great way to get external data onto the chain, e.g. you can’t just make an API request to the outside world in a smart contract. But this is an important need! Smart contracts that depend on future events, e.g. bets and predictions, depend on receiving reliable information from the external world.
The solution to this is a concept of an “Oracle”, generally a trusted third-party that is authorized to introduce external world data to the contract. I wanted to find a way to make this “Oracle” an actual Oracle in my Daily Tarot Card.
Motivation
I really enjoyed the readings this week and ended up reading tangentially about sources of entropy. Fascinatingly, in the world of computers the greatest source of entropy is between the screen and chair – i.e the human! I would have thought there would be more hardware entropy.
However, one human doesn’t really create enough entropy, as in they can game the system. Two would suffice, but somehow I felt like three independent humans was the needed entropy in a secure crowdsourcing of entropy.
Intentional & Meaningful
For my random number generator, I was ok with something slow. And I wanted to allow the Oracles to be intentional… adding to the dialogue. I wanted it to be meaningfully generated, uniform random, and slow as to allow the querent to internalize their query – i.e. the feeling of watching the tarot cards shuffle.
I initially started with a bit vector model, where Oracles input 0s and 1s which created a bit vector => number. However, I decided to allow Oracles input, though being sure to not allow them to completely control the output.
Implementation
function getCombinedHash() public view returns (bytes3 hash_) {
require(canPredict(), "Not all Oracles have advised!");
hash_ = bytes3(
keccak256(abi.encodePacked(
addressToOracle[oracleAddresses[0]].word,
addressToOracle[oracleAddresses[1]].word,
addressToOracle[oracleAddresses[2]].word
))
);
}
At the core of the implementation, once all the Oracles have submitted their words to the contract, I concatenate them and hash them.
In cryptography, a good hash function takes a random input and makes a near random, unpredictable output – e.g. a single letter difference yields an entirely different hash. I like it because it’s resilient to prediction by the Oracles (for the most part). Though it’s a bit of a cheat and people don’t do it often because hashing is expensive. It works well for the purpose here because we will get three random words from our Oracles.
Flow
NOTE: This was incredibly hard to test as there aren’t a lot of eager, blockchain-literate, user-testing volunteers in my life so I tested it locally – a local blockchain with multiple fake metamask wallets.
Screenshots to illustrate the basic flow.

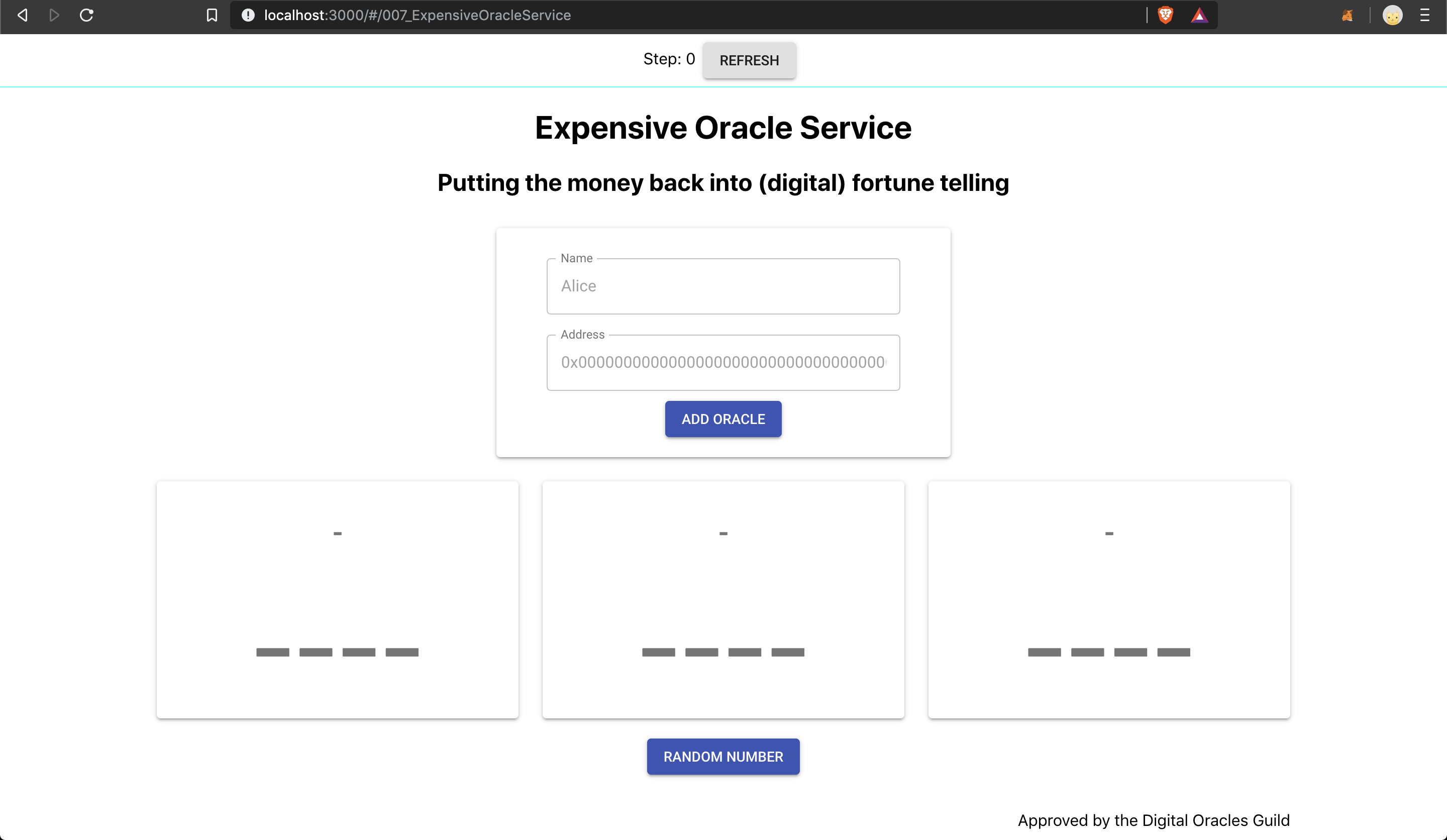

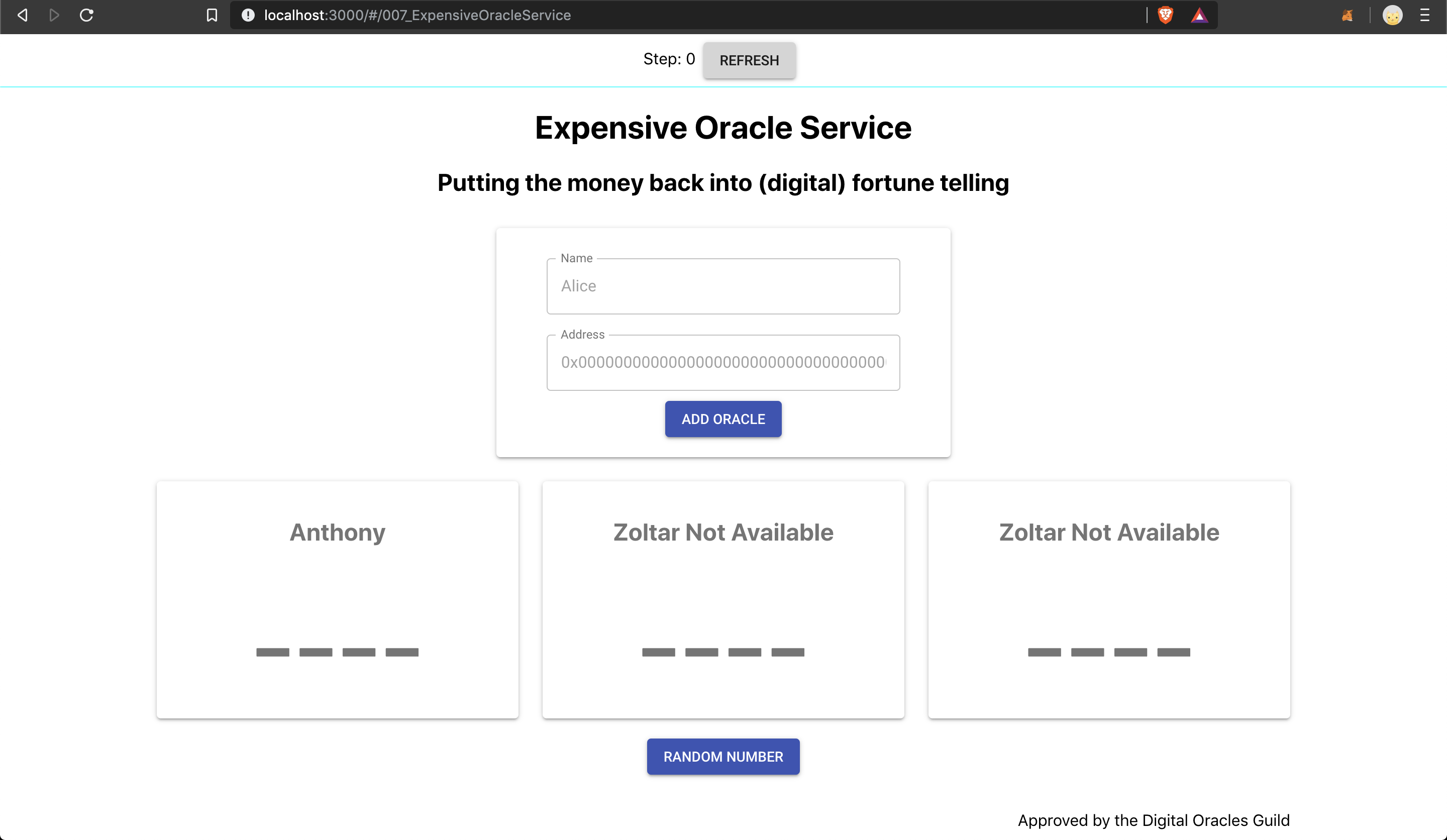

On first load the Querent, who is also the contract owner, sees three panels for Oracles.
The first Oracle is yourself, the Querent. This was done for ease of testing. Ideally, it would be an external Oracle.

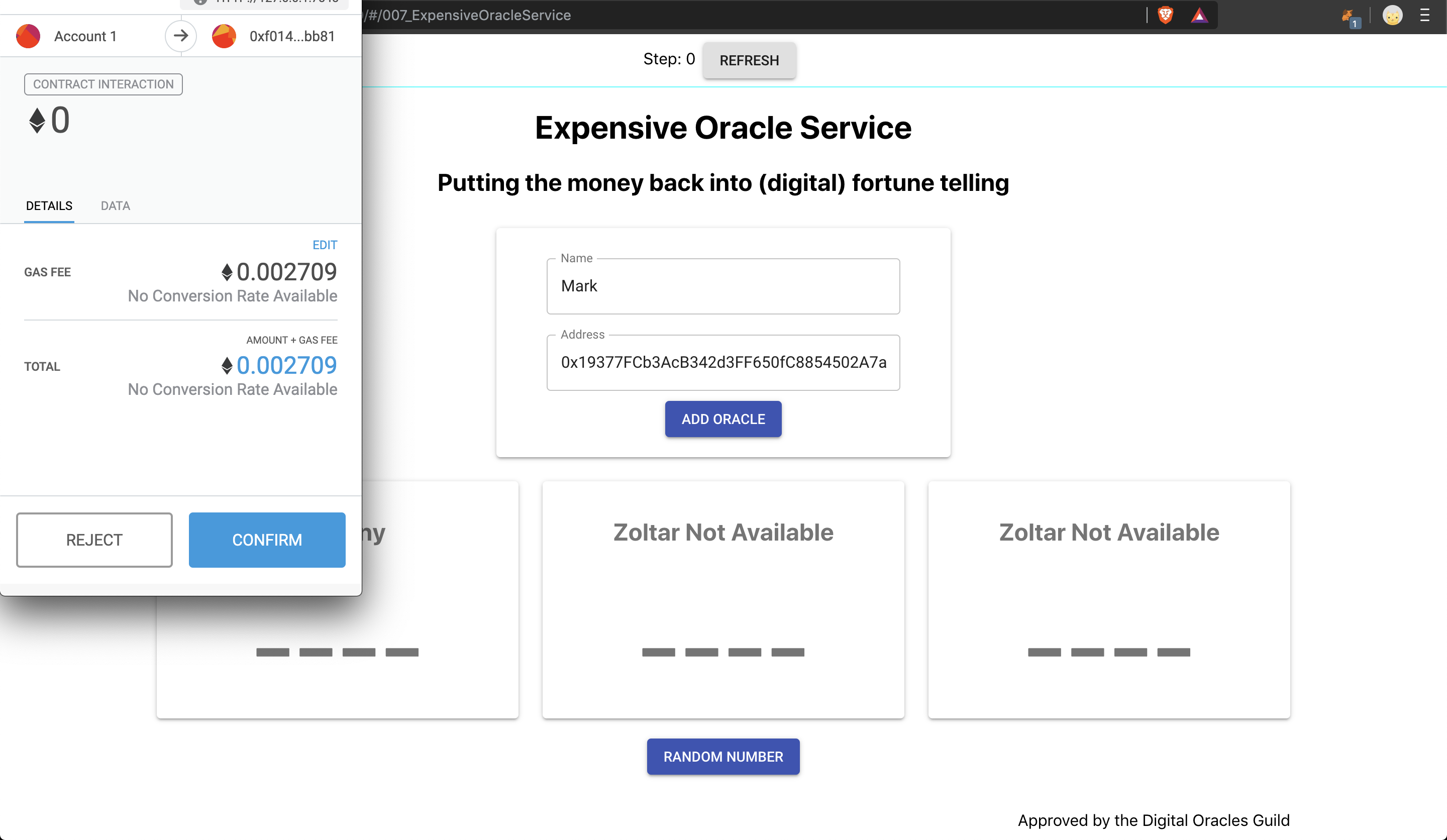

Adding the great Mark After Dark as one of my Oracles.

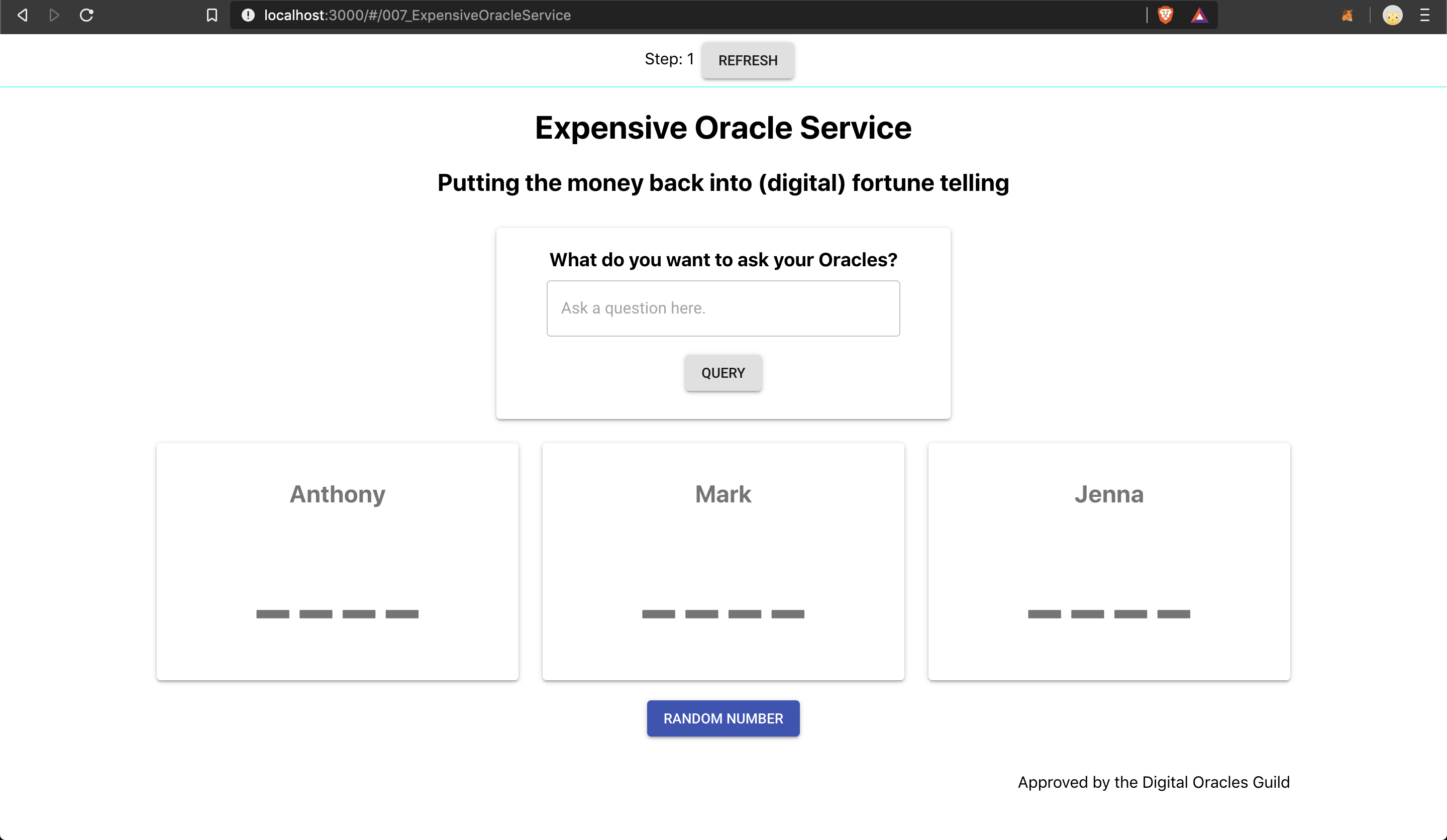

Adding Jenna as another Oracle. I made this a choice, but I think what makes this interesting in the world of blockchain is that blockchain technology is well suited for market creation, identities, and social capital. In other words, we might create a future market of independent, verifiably good Oracles rather than adding friends.

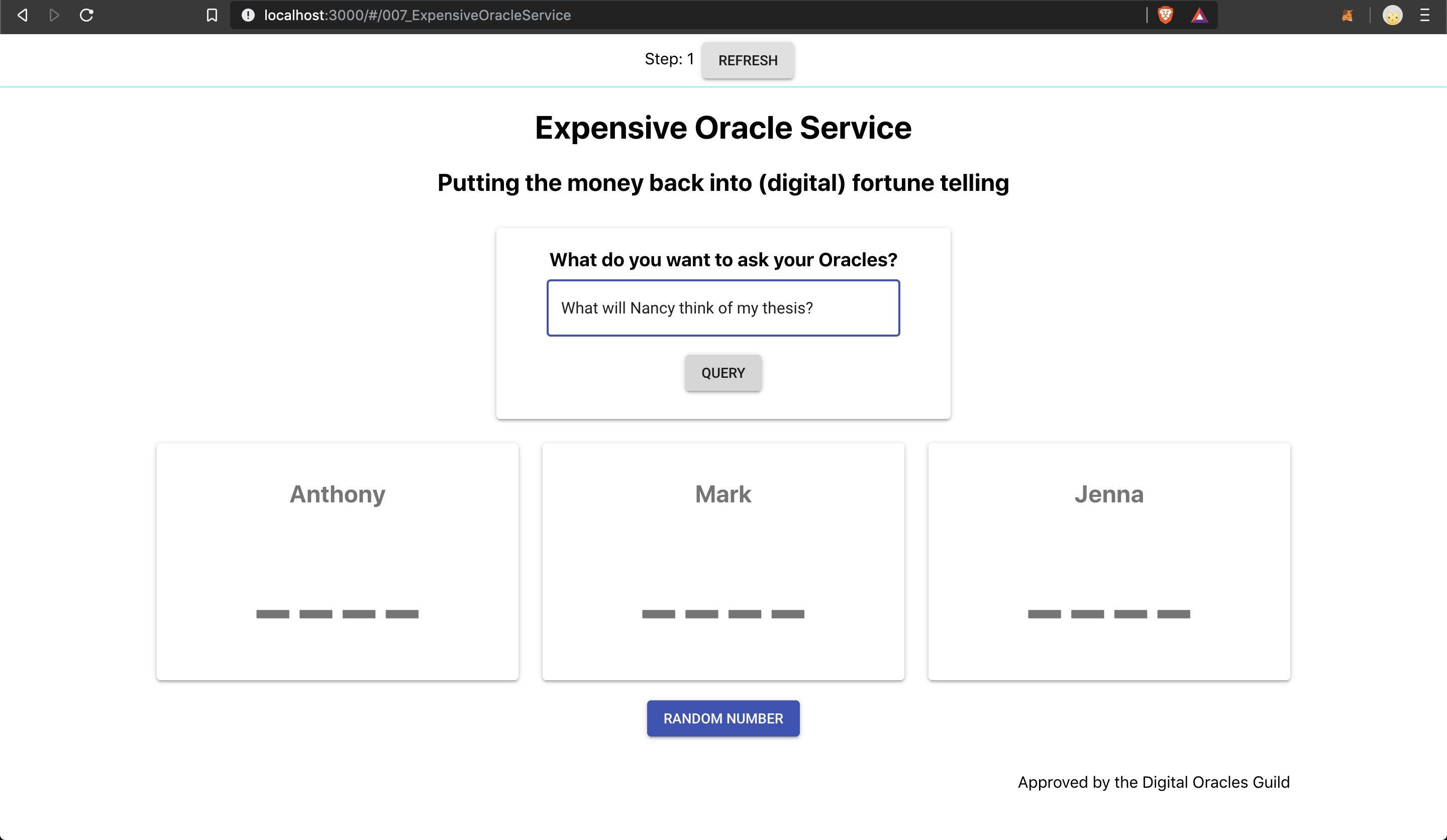

The Querent initiates the interaction by asking a Query.

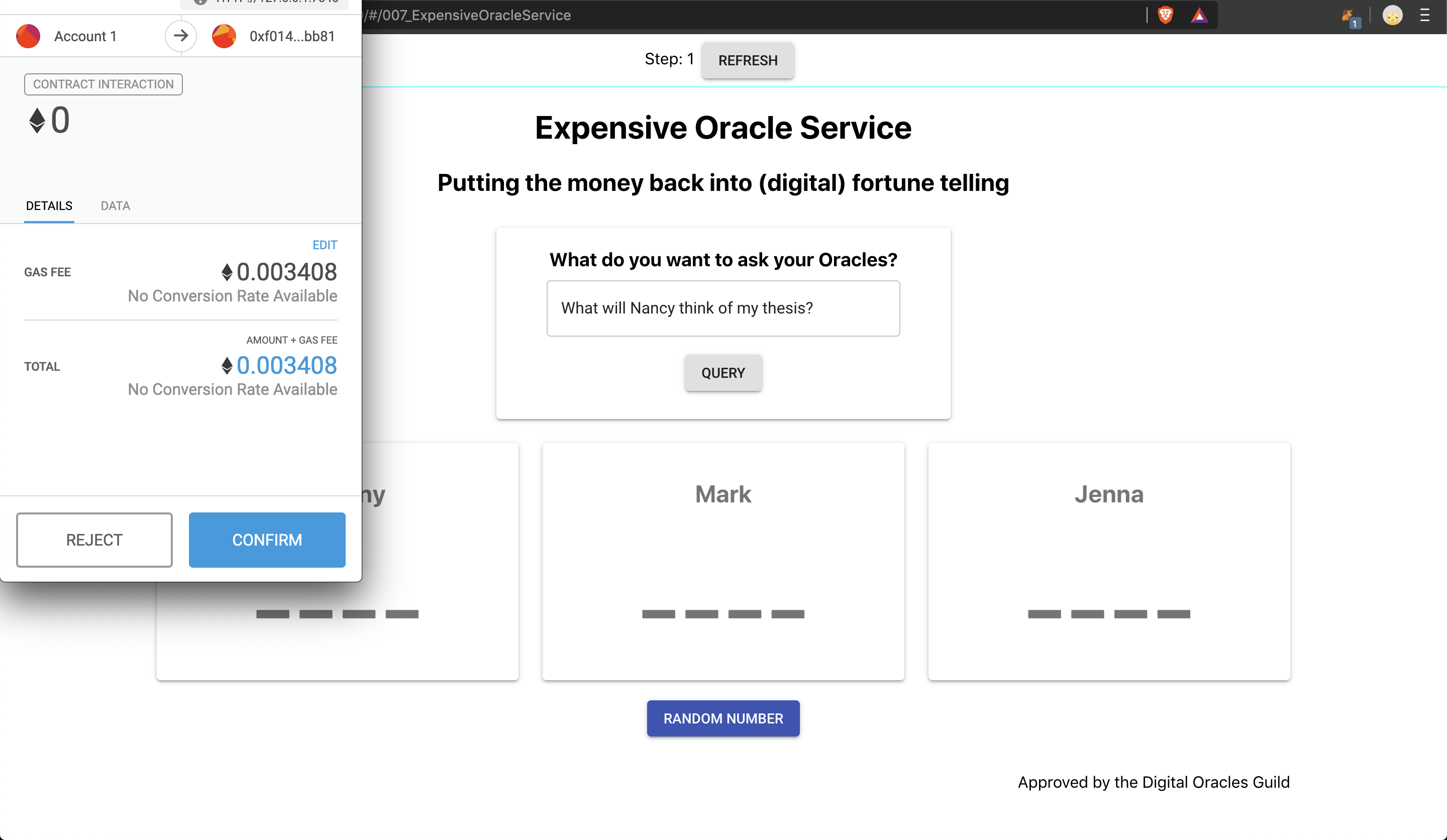

The Querent pays for the Query. This is a small side exploration of the assignment, but blockchain allows for lots of paywalls (and gas fees) and so I anticipate a bit of a reward system for participating Oracles. I also have some interest in the importance of paywalls / taxes here because they make people act with more intent – i.e. you’re actually paying for your reading!

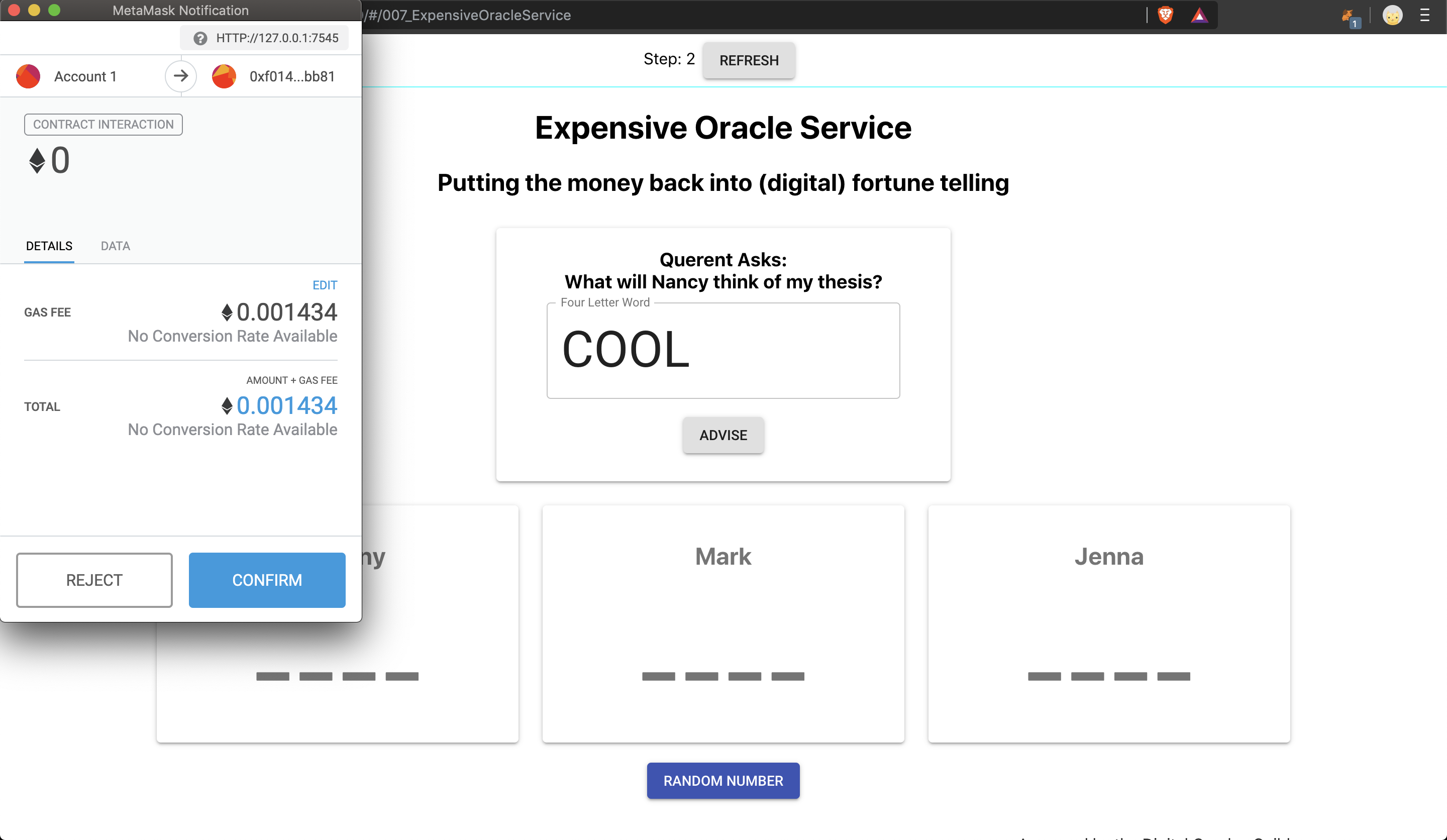

Each Oracle sees the query and responds with a Four Letter Word advisement. This is an intentionally slow process because it must wait for all the Oracles and it must wait for the blockchain to confirm the transactions (~1 min). I wanted it slow because I do believe that shuffling and “meditating” is a key part of Tarot Reading. I choose Four Letter Words because they’re enough characters to be expressive (Oracles can interject meaning) and still provide a decent amount of entropy (26^4).

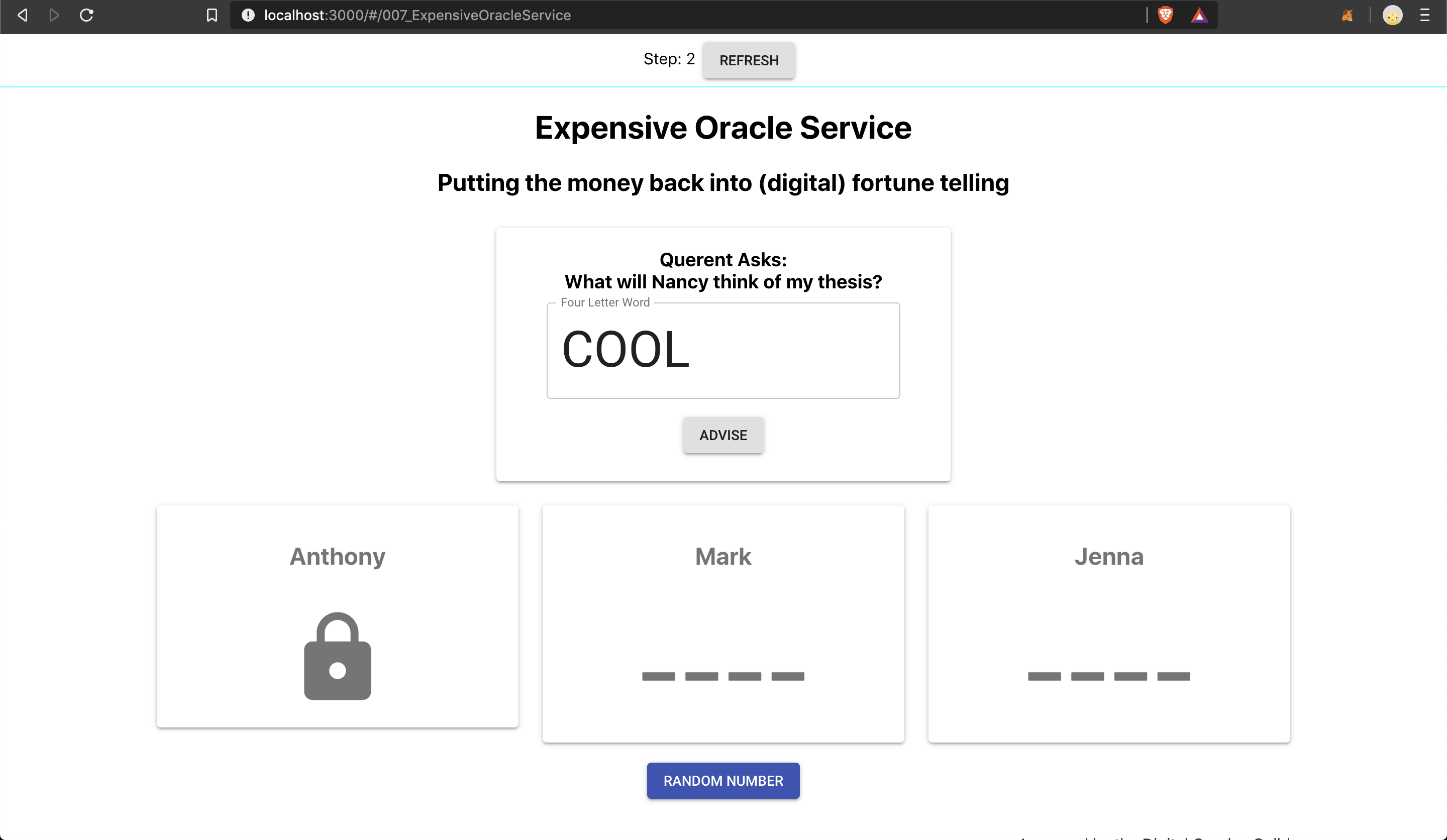

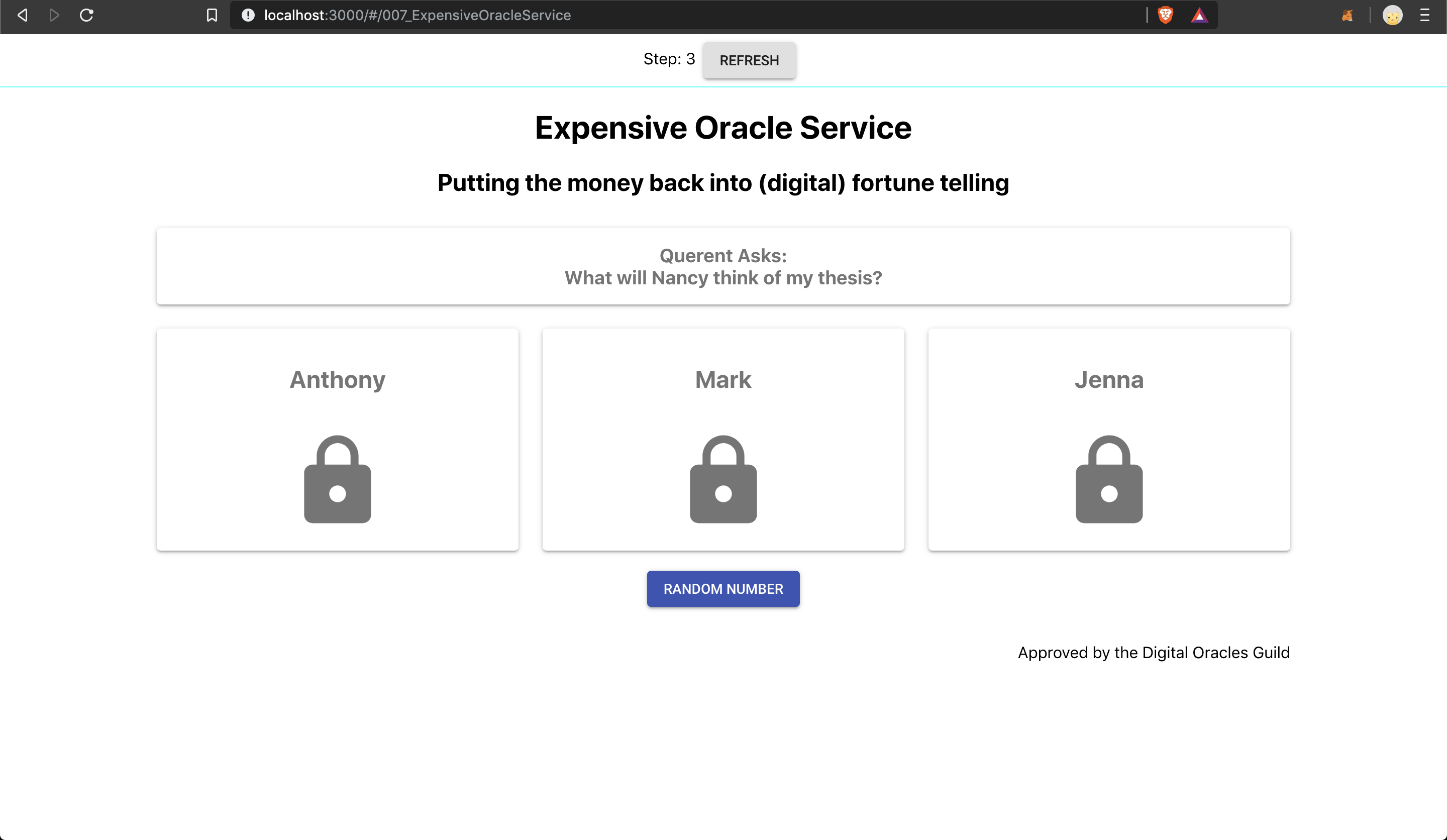

Advice from each Oracle is hidden. Blockchain is great at this, although note I didn’t bother to implement it securely.
All Oracles have finished advising / prophesizing.

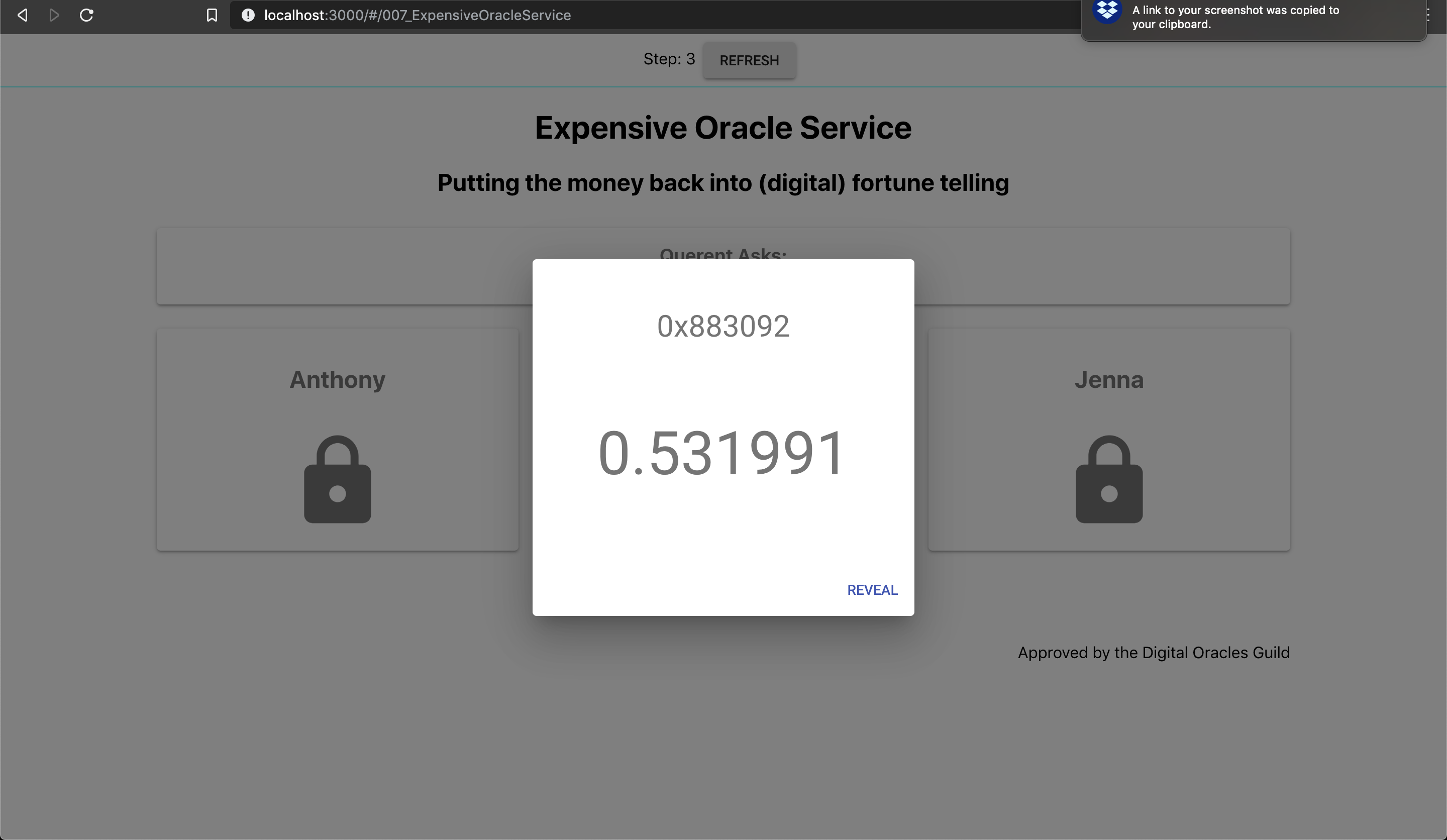

A random number is generated! This number is meant to be portable. In the future maybe it integrates with other services.

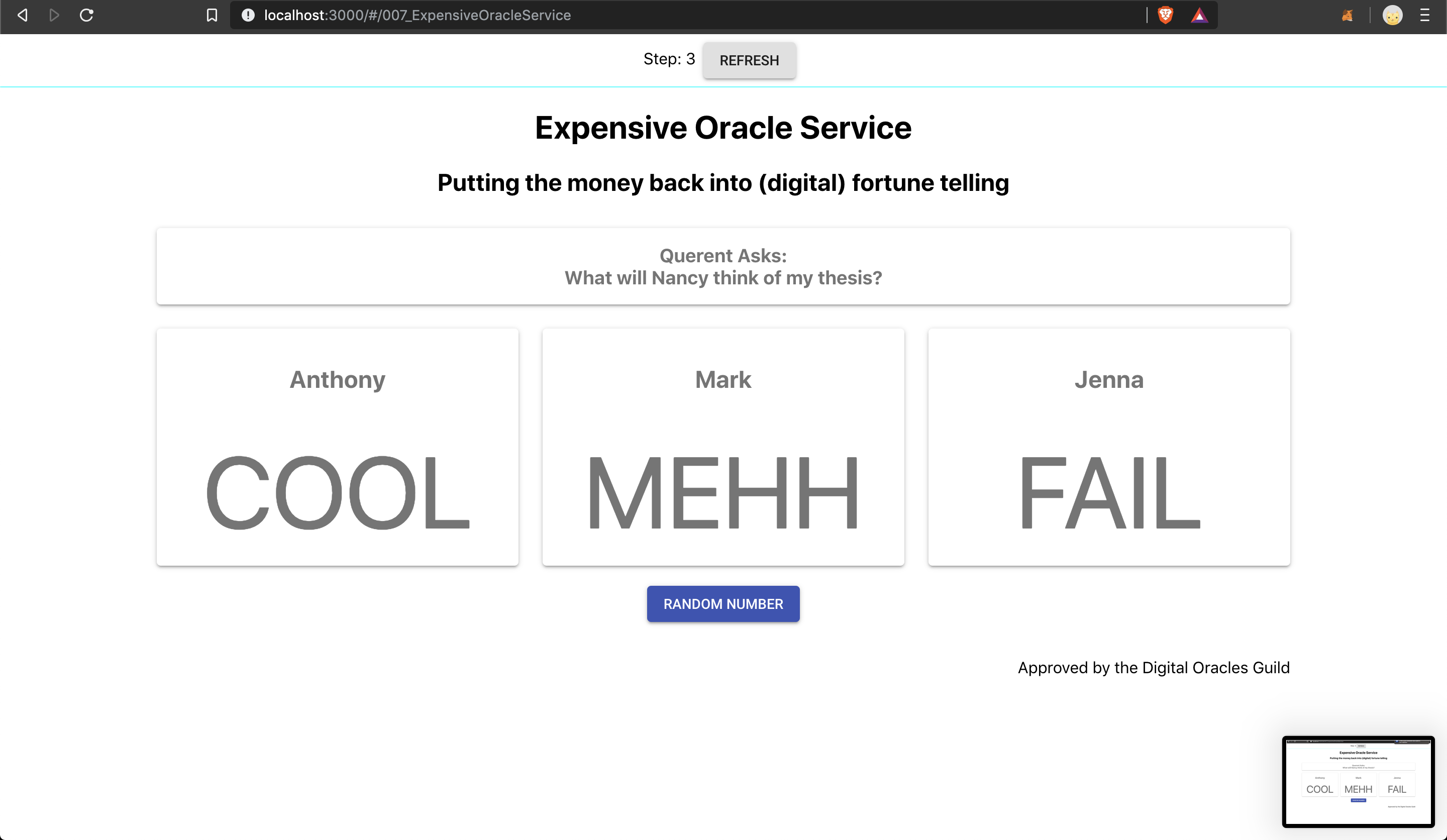

At the end the Querent has the option to reveal all the words. The way I envision it, the Querent takes the random number to digitally shuffle and draw a tarot card for a Daily Reading. Next, they can reveal the words of the Oracles… adding more external interpretations to their narrative.
Code
NOTE: There’s an entire react front-end that exposes forms at the right time. It’s just sugar for the assignment and not too important so I won’t include it here.
ExpensiveOracleService.sol
pragma solidity >=0.4.22 <0.7.0;
import 'openzeppelin-solidity/contracts/ownership/Ownable.sol';
contract ExpensiveOracleService is Ownable {
struct Oracle {
bool exists;
bytes32 name;
bytes32 word;
}
mapping(address => Oracle) public addressToOracle;
address[3] public oracleAddresses; // NB. cap at 3
uint oracleCount;
string public query;
uint public step;
constructor() public {
step = 0;
oracleCount = 0;
addOracle(msg.sender, "Anthony");
}
function addOracle(address oracleAddress_, bytes32 name_) public onlyOwner {
require(oracleCount < 3, "Only 3 oracles allowed.");
oracleAddresses[oracleCount] = oracleAddress_;
addressToOracle[oracleAddress_].name = name_;
addressToOracle[oracleAddress_].exists = true;
oracleCount = oracleCount + 1;
if (oracleCount == 3) {
step = step + 1;
}
}
function getOracles() public view returns (bytes32[3] memory oracleNames_) {
bytes32[3] memory x;
for (uint i = 0; i < 3; i++) {
if (oracleAddresses[i] == address(0x0)) {
x[i] = "Zoltar Not Available";
} else {
x[i] = addressToOracle[oracleAddresses[i]].name;
}
}
oracleNames_ = x;
}
function getStep() public view returns (uint step_) {
step_ = step;
}
function canPredict() public view returns (bool ready_) {
bool x;
for (uint i = 0; i < 3; i++) {
if (getWords()[i] == bytes32(0)) {
x = false;
return x;
}
}
x = true;
return x;
}
// Computes the random number
function getCombinedHash() public view returns (bytes3 hash_) {
require(canPredict(), "Not all Oracles have advised!");
hash_ = bytes3(
keccak256(abi.encodePacked(
addressToOracle[oracleAddresses[0]].word,
addressToOracle[oracleAddresses[1]].word,
addressToOracle[oracleAddresses[2]].word
))
);
}
function setWord(bytes32 word_) public {
require(addressToOracle[msg.sender].exists, "Not a registered Oracle.");
require(addressToOracle[msg.sender].word == bytes32(0), "Already advised.");
addressToOracle[msg.sender].word = word_;
if (canPredict()) {
step = step + 1;
}
}
function getWords() public view returns (bytes32[3] memory words_) {
bytes32[3] memory words;
for (uint i = 0; i < 3; i++) {
words[i] = addressToOracle[oracleAddresses[i]].word;
}
words_ = words;
}
function setQuery(string memory query_) public onlyOwner {
// require(bytes32(query).length == 0, "Querent already queried!");
query = query_;
step = step + 1;
}
function getQuery() public view returns (string memory query_) {
query_ = query;
}
}
